Description

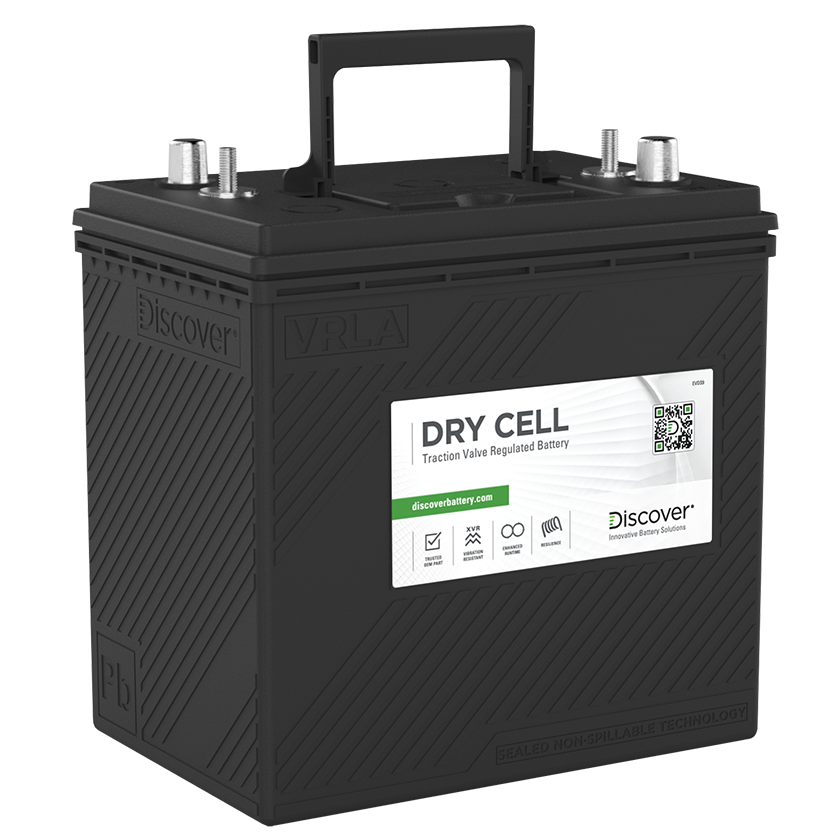

Discover EVGC6A-A 6V 220Ah AGM Golf Cart Battery
Elevate your golf cart or industrial equipment with the Discover EVGC6A-A, a premium 6V AGM (Absorbed Glass Mat) traction battery engineered for unmatched reliability and performance. This sealed, maintenance-free Dry Cell VRLA battery from Discover Battery delivers 220Ah capacity (20-hour rate) at 1.80 VPC, providing superior runtime, deep discharge resilience, and extended cycle life—outperforming traditional flooded, AGM, and gel alternatives in demanding applications like golf carts, aerial platforms, floor care machines, material handling, and utility vehicles.
Key Features and Benefits
- Advanced Dry Cell AGM Technology: Features Hydro Polymer electrolytes for organic capillary separation that resists dry-out and thermal runaway, ensuring consistent performance over the battery’s lifespan. Enhanced alloys with thick plates and carbon additives boost duty cycle efficiency, charge acceptance, and partial state-of-charge operation.
- Superior Durability: Automated through-the-partition welding reduces internal resistance for higher current loads, while the rugged polypropylene case offers exceptional vibration resistance (shock-tested to IEC 61373 and SAE J537 standards) and high heat tolerance. It’s nonspillable, no-gassing, and explosion-proof (SAE J1495 certified).
- Extended Runtime and Life: Achieves 550+ cycles at 70% Depth of Discharge (IEC 60254-1) and 350+ cycles at 100% DoD (DIN 43 539), with 80% DoD deliverable above 1.9 VPC. Low self-discharge (2-3% per month) and compatibility with AGM/gel semi-traction charge profiles (IUI, IUI Pulse, or IUU) maximize efficiency.
- Extreme Condition Resilience: Operates in temperatures from -40°C to 50°C (-40°F to 122°F) for discharge, with superior high-temperature life over standard AGM and low-temperature performance better than flooded or gel batteries. Ideal for frequent, intense use in golf carts, sweepers, scrubbers, and more.
- Safety and Compliance: Maintenance-free design with no transport restrictions (IMDG, IATA/ICAO, DOT). Certified to UL, CE, ISO/DIN standards, and manufactured in ISO 9001/14001 facilities. Top-charge within 6 months of storage to prevent sulfation.
Technical Specifications
For detailed specifications, view the official Discover EVGC6A-A product page.
| Specification | Details |
|---|---|
| Voltage | 6V |
| Capacity | 220Ah (20HR at 1.80 VPC, 25°C); 190Ah (5HR at 1.75 VPC); 170Ah (3HR at 1.70 VPC) |

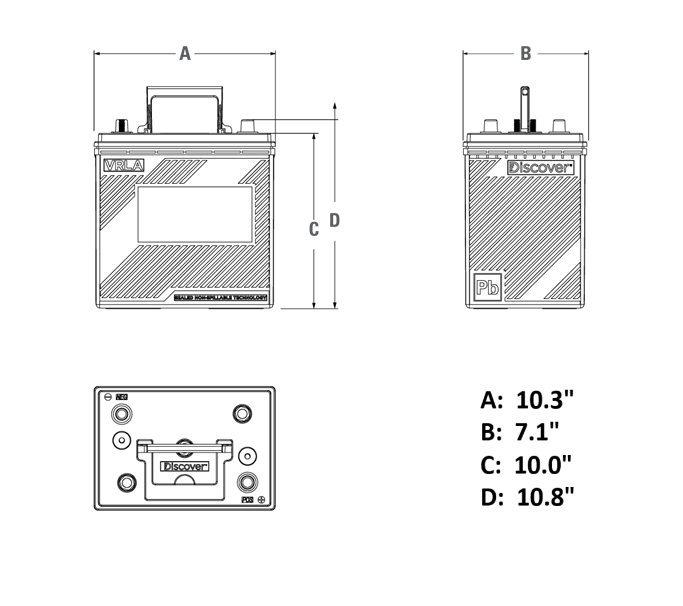

| Dimensions (L x W x H) | 10.3″ x 7.1″ x 10.0″ (262 x 180 x 254 mm); Total Height: 10.8″ (274 mm) |
| Weight | 65.04 lbs (29.50 kg) |
| Terminal Type | AM (Automotive Marine) |
| Internal Resistance | 1.76 mΩ (approx.) |
| Short Circuit Current | 3400A (at 20°C) |
| Discharge Performance | 475 min @ 25A; 185 min @ 56A; 125 min @ 75A; 107 min @ 85A; 88 min @ 100A |
| Operating Temperatures | Charge: -10°C to 50°C; Discharge: -40°C to 50°C; Storage: -20°C to 60°C |
| Group Size | GC2 (BCI) |
Trusted by top OEMs for over a decade, the EVGC6A-A ensures hassle-free operation with global support and optimized charge algorithms for peak longevity. Perfect for replacing worn batteries in your golf cart fleet or industrial setup—order now for seamless power that lasts.
Compatible Cross-References
This Discover EVGC6A-A is a direct, high-performance replacement for a wide range of OEM and aftermarket batteries. Search by brand and part number below for easy compatibility:
- Bright Way: BW EVGC-220A-AM
- Deka: 8AGC2, SLIAGC2
- Discover: EVGC6A-A, EVGC6A-B, EVGT6A-A
- Energy Power: EP-EVGC-220A-AM
- FullRiver: DC224-6, DC2246
- Harris Battery: HBDAGMGC6-A
- Karcher: 8.632-254.0, 86322540
- Leoch: DTA6245, LDC6-210-GC2, LDC6-224-GC2
- Lifeline: GPL-4CT
- Nilfisk: 956200, 99558
- Nobles: 314670
- Tennant: 1021446, 1074042, 1192540, 311252, 3390981
- US Battery: US AGM 2000
- Vision: EVGC-200A-AM, EVGC-220A-AM
Disclosure: The Discover EVGC6A-A may be slightly shorter than some cross-referenced part numbers. Please verify size and compatibility before ordering. Contact our expert staff at 800-276-8002 for assistance with cross-referencing questions.
Upgrade to Discover quality today and experience the difference in power and endurance!
