Description

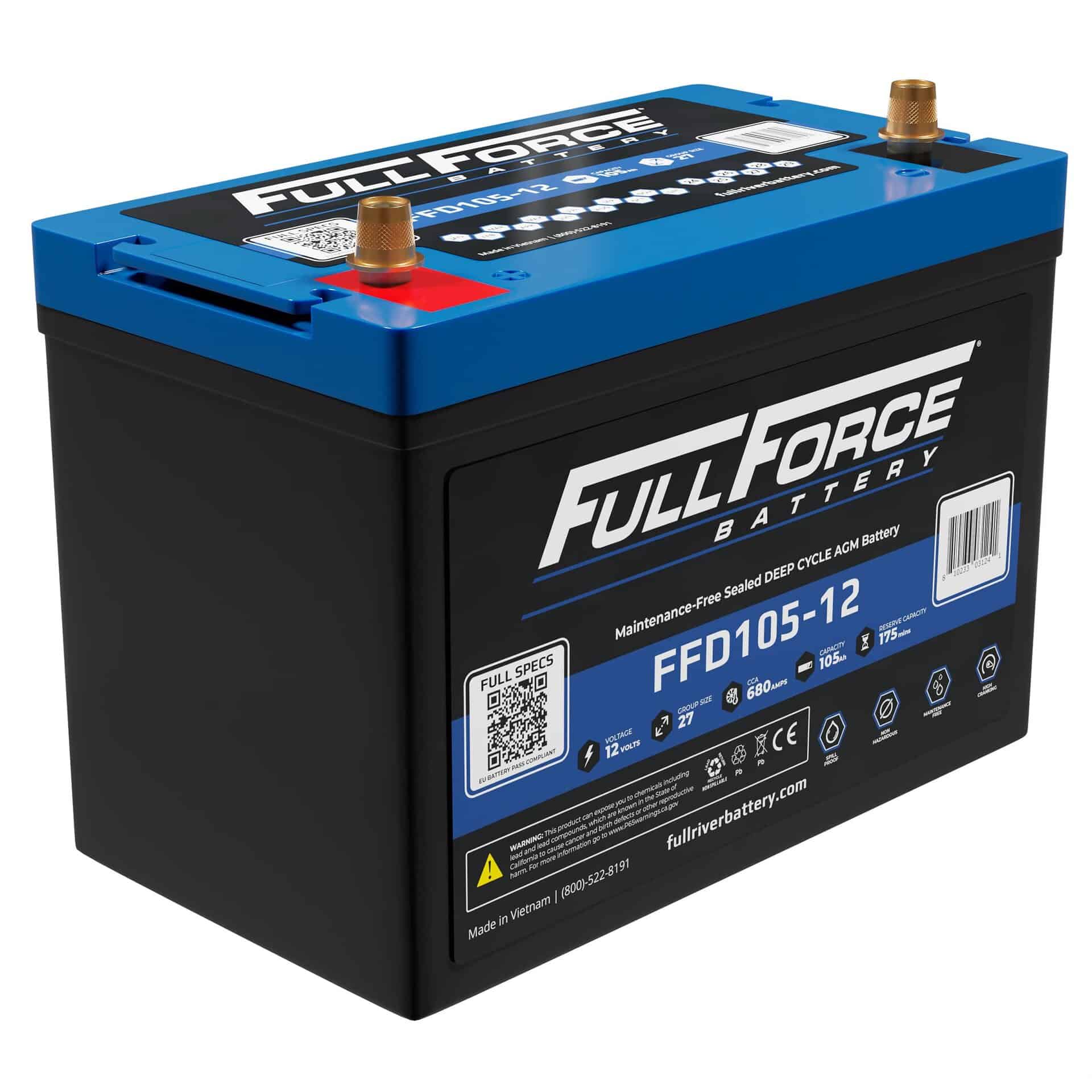

Full Force FFD105-12 12V 105Ah AGM Deep Cycle Battery
Power your deep cycle applications with the Full Force FFD105-12, a premium 12V AGM (Absorbed Glass Mat) battery designed for exceptional reliability and performance. This sealed, maintenance-free battery delivers 105Ah capacity (20-hour rate), offering robust runtime and extended cycle life for demanding uses such as marine, RV, solar storage, and off-grid power systems.
Key Features and Benefits
- Advanced AGM Technology: Utilizes Absorbed Glass Mat technology where the electrolyte is absorbed into fiberglass separators, ensuring a non-spillable, maintenance-free design that resists dry-out and thermal runaway for consistent performance.
- Superior Durability: Constructed with an ABS plastic case rated UL94-HB for flame resistance, this battery withstands vibration (shock-tested to industry standards) and operates reliably under high current loads with an internal resistance of 4.5 mΩ.
- Extended Runtime and Life: Provides 800 cycles at 50% Depth of Discharge (per BCI standards) and a reserve capacity of 175 minutes at 25 amps, with low self-discharge (2-3% per month) for long-term storage and efficiency.
- Extreme Condition Resilience: Performs across a wide temperature range from -40°F to 160°F (-40°C to 71°C) for discharge, with optimal capacity at 77°F (25°C), making it ideal for diverse environments.
- Safety and Compliance: Certified non-spillable and exempt from DOT hazardous materials regulations (49 CFR Section 173.159(d)), adhering to UL, CE, ISO 9001:2008, ISO 14001:2004, and ISO 18001:2007 standards.
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12V |
| Capacity | 105Ah (20HR at 1.75 VPC, 77°F); 99Ah (C10); 86Ah (C5); 116Ah (C100) |
| Dimensions (L x W x H) | 12.13″ x 6.61″ x 9.33″ (308 x 168 x 237 mm); Height (case only): 8.31″ (211 mm) |
| Weight | 66.2 lbs (30 kg) |
| Terminal Type | M8+TP |
| Terminal Torque | 5.8 – 6.7 ft/lbs (62 – 80 lbs/in, 7 – 9 Nm) |
| Internal Resistance | 4.5 mΩ (approx.) |
| Cold Cranking Amps (CCA) | 680A |
| Cranking Amps (CA/MCA) | 820A |
| Reserve Capacity | 175 min @ 25A; 43 min @ 75A |
| Operating Temperatures | Charge: 5°F to 122°F (-15°C to 50°C); Discharge: -40°F to 160°F (-40°C to 71°C); Storage: 5°F to 122°F (-15°C to 50°C) |
| Group Size | 27 (BCI) |
Trusted for its robust design, the FFD105-12 ensures reliable power with optimized charge algorithms. Perfect for upgrading batteries in your marine, RV, or solar setup—order now for enduring performance.
Visit the manufacturers website for additional information: FFD105-12
Compatible Cross-References
This Full Force FFD105-12 is a direct, high-performance replacement for a wide range of OEM and aftermarket batteries. Search by brand and part number below for easy compatibility:
- Deka: 8A27DTM
- Discover: EV27A-A
- Full Force: FFD105-12
- FullRiver: DC105-12
- Leoch: LDC12-105-G27-DT, LDC12-105-G27-T6A
- Lifeline: GPL-27T
- Mighty Max: ML100-10
- Power Sonic: PS-121000U
- Trojan: 27-AGM, 27-AES
- Universal Power Group (UPG): UB121000
- US Battery: US AGM 27
Disclosure: Terminals may differ from the cross referenced part numbers above. Please verify size and compatibility before ordering. Contact our expert staff at 800-276-8002 for assistance with cross-referencing questions.
Upgrade to Full Force quality today and experience the difference in power and endurance!
