Description

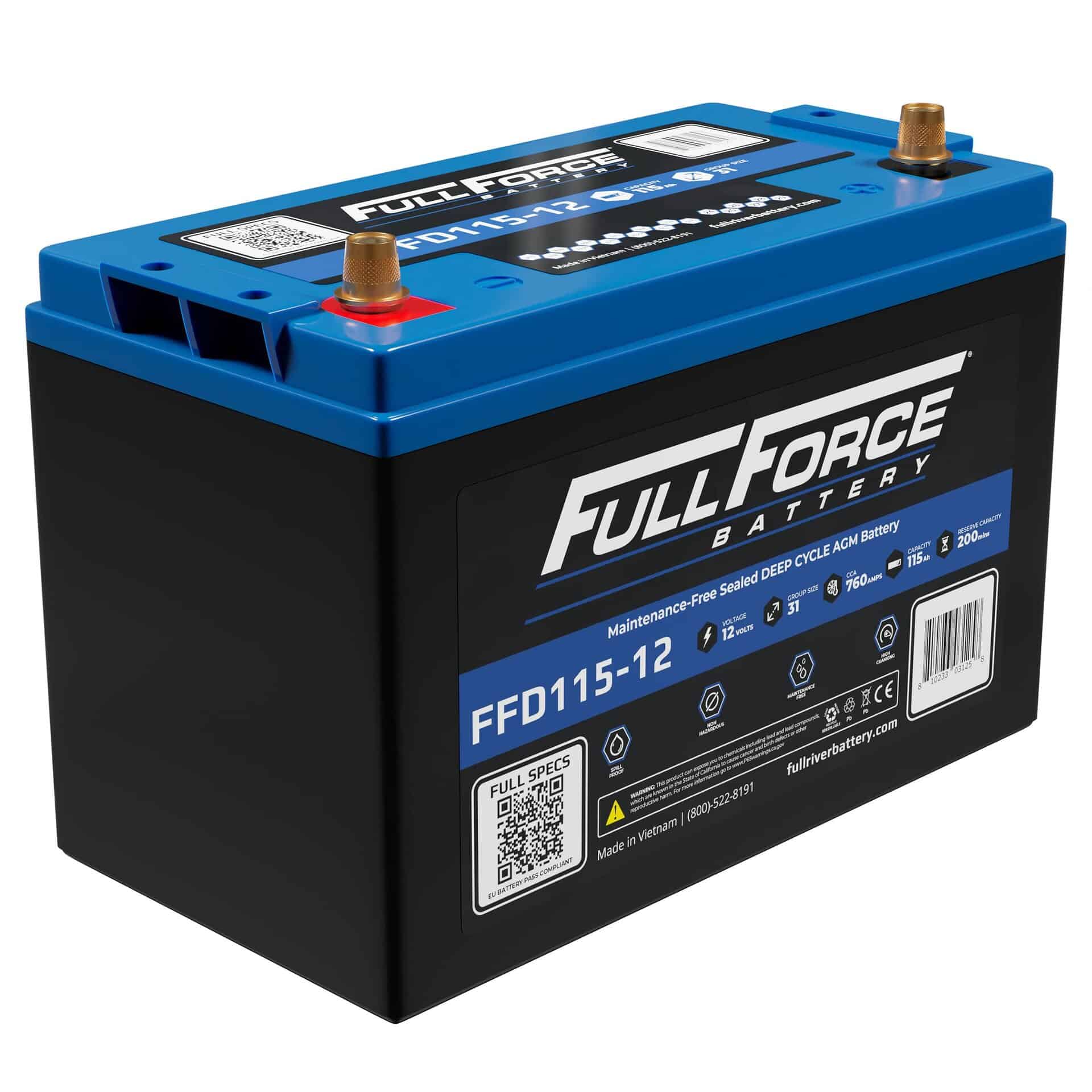

Full Force FFD115-12 12V 115Ah AGM Deep Cycle Battery
Power your deep cycle systems with the Full Force FFD115-12, a robust 12V AGM (Absorbed Glass Mat) battery from the Full Force Series designed for reliable performance in marine, RV, solar, and off-grid applications. This sealed, maintenance-free battery provides 115Ah capacity (20-hour rate) for extended runtime, combined with high cranking power to handle demanding loads while outperforming traditional flooded batteries in vibration resistance and longevity.
Key Features and Benefits
- Advanced AGM Construction: Absorbed Glass Mat technology absorbs electrolyte into fiberglass separators for a spill-proof, vibration-resistant design that eliminates maintenance, gassing, and dry-out—ideal for rugged marine and RV environments.
- Dual-Purpose Power: Delivers 760 CCA for reliable cold starts and 910 CA for marine cranking, ensuring strong performance in starter and deep cycle duties without the need for watering or additives.
- Extended Reserve and Runtime: Offers 200 minutes of reserve capacity at 25A, supporting critical systems during outages, with low self-discharge (2-3% per month) for seasonal storage and efficient operation in solar setups.
- Rugged Durability: Built in a flame-retardant ABS plastic case (UL94-HB rated) that withstands shocks and extreme conditions, with an internal resistance of 4.0 mΩ for efficient high-current delivery.
- Safety and Compliance: Non-spillable and non-hazardous for land, sea, and air transport (DOT, IATA/ICAO, IMDG compliant per 49 CFR 173.159(d)), certified to ISO 9001:2008, 14001:2004, and 18001:2007 for quality, environmental, and occupational health standards.
Technical Specifications
For detailed specifications, view the official Full Force FFD115-12 product page or download the spec sheet.
| Specification | Details |
|---|---|
| Voltage | 12V |
| Capacity | 115Ah (20HR at 1.75 VPC, 77°F); 108Ah (10HR); 91Ah (5HR); 127Ah (100HR) |
| Dimensions (L x W x H) | 13.07″ x 6.89″ x 9.49″ (332 x 175 x 241 mm); Height (case only): 8.46″ (215 mm) |
| Weight | 71.7 lbs (32.5 kg) |
| Terminal Type | M8 + TP28 |
| Terminal Torque | 5.8 – 6.7 ft/lbs (62 – 80 in-lbs, 7 – 9 Nm) |
| Internal Resistance | 4.0 mΩ (approx.) |
| Cold Cranking Amps (CCA) | 760A (at 0°F / -18°C) |
| Cranking Amps (CA/MCA) | 910A (at 32°F / 0°C) |
| Reserve Capacity | 200 min @ 25A |
| Operating Temperatures | Charge: 5°F to 122°F (-15°C to 50°C); Discharge: -40°F to 160°F (-40°C to 71°C); Storage: 5°F to 122°F (-15°C to 50°C) |
| Group Size | 31 (BCI) |
Trusted for its versatile design, the FFD115-12 integrates seamlessly into dual-purpose systems with optimized charge profiles for maximum efficiency. Upgrade your setup for unbeatable endurance and power today!
Compatible Cross-References
This Full Force FFD115-12 is a direct, high-performance replacement for a wide range of OEM and aftermarket batteries. Search by brand and part number below for easy compatibility:
- Deka: 8A31
- Discover: EV31A-A, EV31A-B
- EaglePicher: CF-12V100
- FullRiver: DC115-12
- Leoch: LDC12-115-G31-DT
- Lifeline: GPL-31T, GPL-31XT
- Power Sonic: PS-121100
- Sigma Tek: SP12-110
- Trojan: T31-AGM
- Universal Power Group (UPG): UB121100 (D5751)
- US Battery: US AGM 31
- VMAX: MR137-120
- Vision: EV31-105A-AM, EV31-115A-AM
- Weize: BCI Group 31M
- X2Power: SLI31AGMDPM
Disclosure: The Full Force FFD115-12 may be slightly shorter than some cross-referenced part numbers. Please verify size and compatibility before ordering. Contact our expert staff at 800-276-8002 for assistance with cross-referencing questions.
Upgrade to Full Force quality today and experience the difference in power and endurance!
