Description

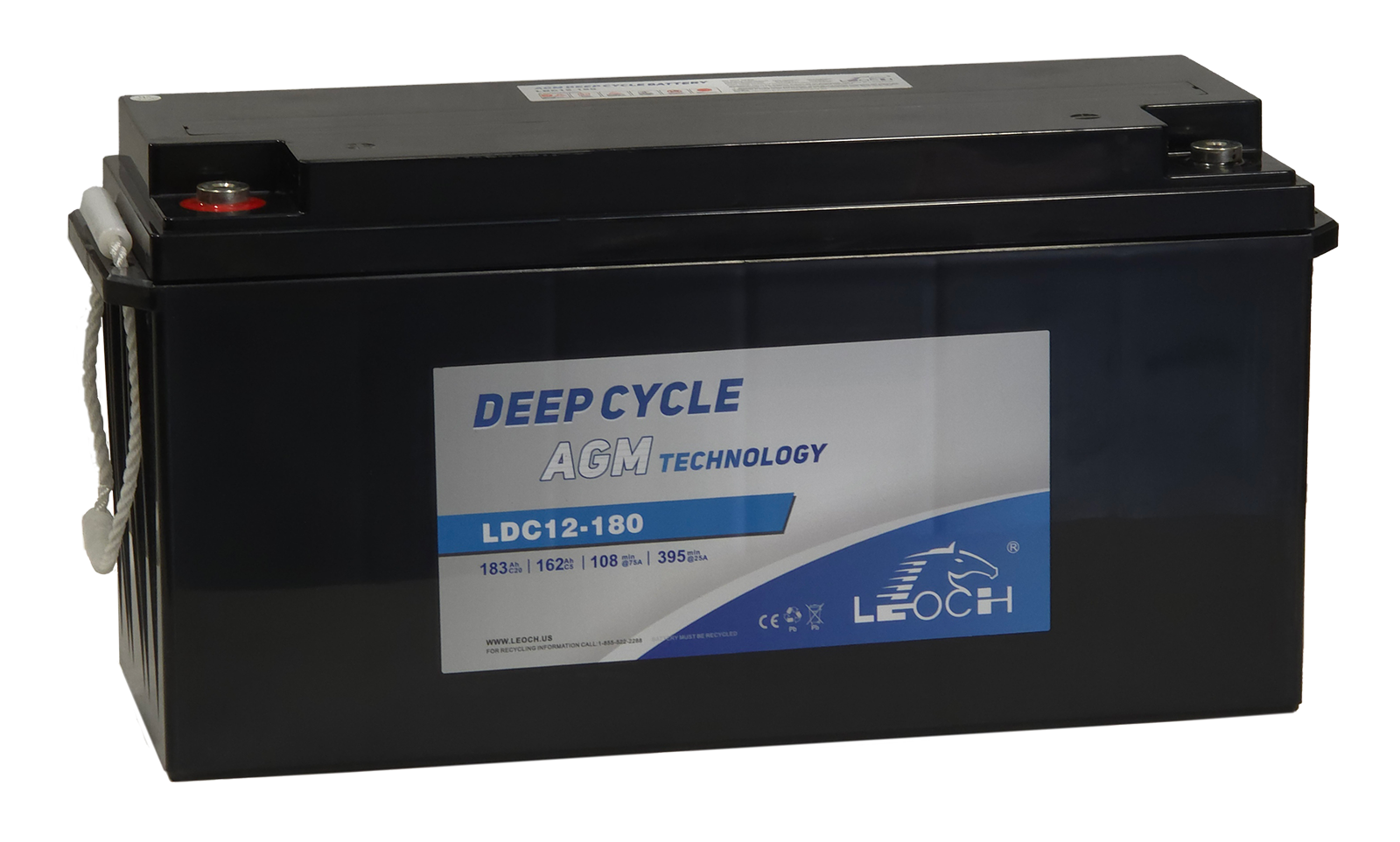

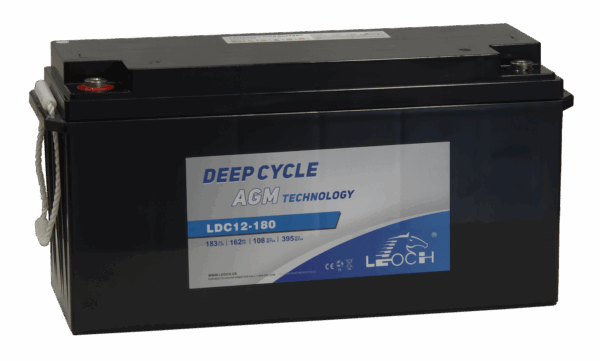

Leoch LDC12-180 12V 180Ah AGM Deep Cycle Battery
Empower your traction applications with the Leoch LDC12-180, a high-performance 12V AGM (Absorbed Glass Mat) deep cycle battery from the LDC series, featuring advanced carbon AGM-GEL technology for exceptional stability and longevity. This sealed, maintenance-free battery delivers 180Ah capacity (20-hour rate) for extended runtime in demanding uses like golf carts, aerial work platforms (AWP), cleaning equipment, sightseeing vehicles, mobility scooters, and electric vehicles—offering superior resistance to deep discharge and partial state-of-charge (PSoC) operation.
Key Features and Benefits
- Advanced Carbon AGM-GEL Technology: Combines carbon boost additives and gel electrolyte for optimized plate performance, reducing sulfation, minimizing water loss, and delaying positive active material (PAM) softening—ensuring consistent power delivery and longer service life.
- Excellent Deep Cycle Performance: Achieves high cycle life with 4BS crystal paste technology, double-layer separators, and rare earth alloys, providing stable initial capacity and improved PSoC cycling for frequent deep discharges in traction applications.
- Enhanced Durability: Pre-sulfate technology and higher paste density reduce shedding and stratification, while the robust ABS container withstands vibration and shock, making it ideal for rugged environments like golf carts and cleaning machines.
- Wide Temperature Resilience: Performs reliably in discharge temperatures from -4°F to 131°F (-20°C to 55°C), with low self-discharge for reliable storage and efficient operation in varying climates.
- Safety and Maintenance-Free: Non-spillable design with no gassing or watering required; compliant with global transport regulations for safe shipping and handling.
Technical Specifications
For detailed specifications, download the official Leoch LDC12-180 spec sheet.
| Specification | Details |
|---|---|
| Voltage | 12V |
| Capacity | 180Ah (20HR rate); 162Ah (5HR) |
| Dimensions (L x W x H) | 19.0″ x 6.69″ x 9.39″ (483 x 170 x 238.5 mm); Container Height: 9.39″ (238.5 mm) |
| Weight | 110.5 lbs (50.1 kg) |
| Terminal Type | M8 T11 (Threaded Post) |
| Reserve Capacity | 395 min @ 25A; 155 min @ 56A |
| Operating Temperatures | Charge: 32°F to 104°F (0°C to 40°C); Discharge: -4°F to 131°F (-20°C to 55°C); Storage: 5°F to 104°F (-15°C to 40°C) |
| Group Size | N/A |
Engineered for traction excellence, the LDC12-180 optimizes electrolyte stratification and plate assembly for peak efficiency and reduced internal resistance. Ideal for replacing shorter batteries—verify fit for its 19-inch length to ensure compatibility in your setup.
Compatible Cross-References
This Leoch LDC12-180 is a direct, high-performance replacement for a wide range of OEM and aftermarket batteries, particularly those with ~150Ah capacity and 19-inch length. Search by brand and part number below for easy compatibility (note: avoid confusion with shorter 16-inch models):
- Full River: DC160-12
- Leoch: LDC12-180
- NPP: NPD12-150
Disclosure: Please verify size and compatibility before ordering. Contact our expert staff at 800-276-8002 for assistance with cross-referencing questions.
Upgrade to Leoch quality today and experience the difference in power and endurance!
