Description

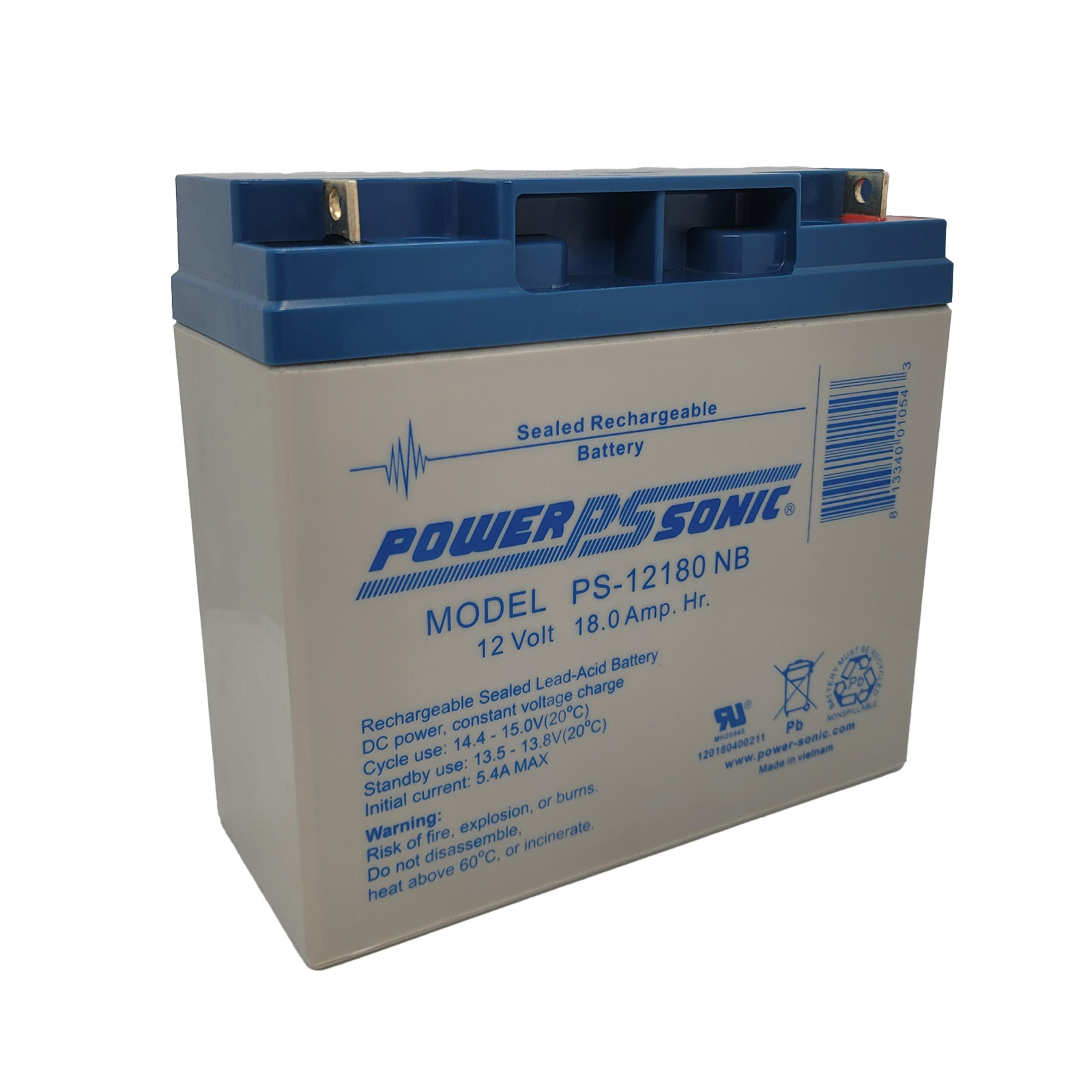

The PS-12180NB is part of Power-Sonic’s PS range of sealed lead acid batteries (also referred to as VRLA) which have been specifically designed for general purpose and standby applications. The 12V 18.0 Ah battery offers excellent performance in a wide range of applications including security and fire systems, medical devices, emergency lighting and UPS systems.
All Power-Sonic batteries are subject to stringent quality controls through every step of the manufacturing process ensuring both consistency and reliability.
- 12V 18.0 Ah general purpose VRLA battery
- Absorbent Glass Mat (AGM) technology for superior performance
- Power and volume ratio yielding unrivalled energy density
- Valve regulated, maintenance free spill proof construction
- Rugged impact resistant ABS case and cover
- 5 year design life
- Approved for transport by air. D.O.T., IATA, FAA and CAB certified
Dimensions
Length: 7.13″ (181 mm)
Width: 3.00″ (76 mm)
Height: 6.59″ (167 mm)
Specifications
Model Number: PS-12180NB
Nominal Voltage: 12V
Capacity @20HR (AH): 18.00Ah
Capacity @10HR (AH): 17.10 Ah
Weight: 5.6kg / 12.32lbs
Case: ABS UL94:HB
Official Manufacturer Links:
• Power-Sonic PS-12180 Product Page
• Download PS-12180 Datasheet (PDF)
Cross Reference / Equivalent Batteries
| Part Number | Manufacturer | Notes |
|---|---|---|
| A212/15G / A21215G | Sonnenschein (Exide / GNB) | Dryfit A200 series (15 Ah → commonly upgraded to 18 Ah) |
| AP-12180NB-H | Amstron | |
| BAT-0058 | Eaton Powerware | UPS replacement cartridge |
| D18S | AJC Battery | AJC-brand direct replacement |
| D5745 | Universal Power Group (UPG) | |
| DJW12-18 | Leoch | Direct equivalent |
| LP12-18 | Leoch | Direct equivalent |
| LC-RC1217P | Panasonic | |
| LC-X1220AP | Panasonic | |
| LCR-12V17P / LCR12V17BP / LCR12V17CP | Panasonic | |
| LCRC1217P / LCRD1217P | Panasonic | |
| LCX-1220AP / LCX1220AP / LCX1220P | Panasonic | |
| ML18-12 | Mighty Max Battery | |
| NP17-12 | Yuasa / Enersys (Genesis) | |
| NP18-12 | Yuasa / Enersys (Genesis) | |
| NP18-12B | Enersys (Genesis) / Yuasa | Exact dimensional match |
| NP18-12BFR | Enersys (Genesis) | Flame-retardant version |
| PE12V17B1 | Portalac / GS Battery | |
| PE12V18B1 | Portalac / GS Battery | |
| PS-12180 | Power-Sonic | |
| PS-12180-NB | Power-Sonic | (this battery) |
| PS-12200NB | Power-Sonic | Slight capacity variance, same case |
| SCP12180 / SCP12180 NB | Vision Battery | SCP series (NB = nut-and-bolt) |
| SCP12220 / SCP12220 NB | Vision Battery | 22 Ah version, same physical case |
| UB12180 | Universal Power Group (UPG) | |
| WP17-12 | Kung Long | Slight capacity variance, same case |
| WP18-12 | Kung Long | Direct equivalent |
| WP20-12 | Kung Long | Slight capacity variance, same case |
| YG51913 | Yuasa | |
| YS51913 | Yuasa |
Note: All listed batteries share the same physical dimensions (±1-2 mm), nut-and-bolt (NB) terminals, and are interchangeable with the Power-Sonic PS-12180NB. However please verify dimensions of your battery prior to ordering. If you have questions please call us at 1-800-276-8002 where our staff is ready to help with you cross referencing questions.
